Encapsulated Calcium sulphate raised access floor
Product description

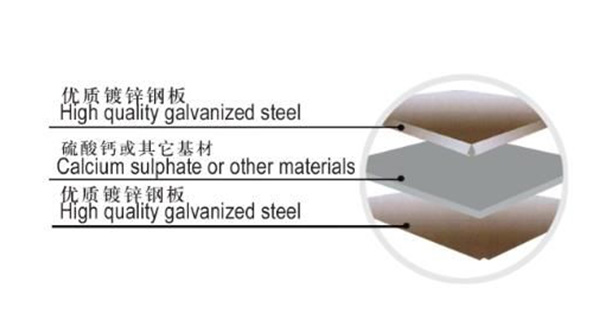

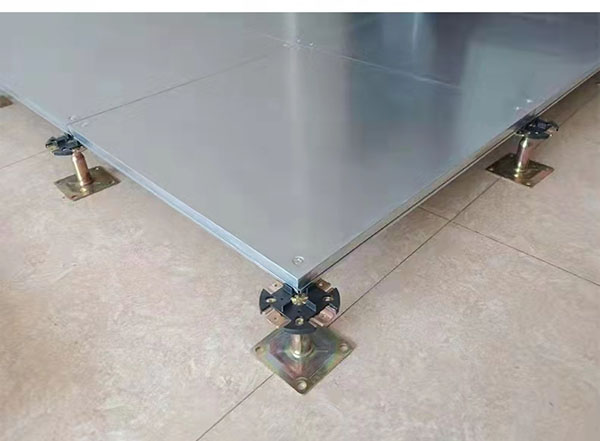

The center adopts high strength calcium sulfate as the base material, the upper and lower are coated with galvanized steel plate and extended to the sides around, through the form of hook link, stamping, riveting form into a closed ring! Six sides of galvanized riveted sheet, four corners with or without corner keyhole, surface of popular science carpet, PVC or other materials; The bracket is molded with plastic pad on it, and the supporting structure around the beam or the supporting structure at the four corners can be used.
Calcium sulfate base plate adopts non-toxic and unbleached fabric fiber as processing material, combined with solidified calcium sulfate crystal, and made by pulse pressing process, because of its environmental protection, fire prevention, high strength, leveling and many other advantages, has become a new generation of raised floor.
Technical parameters: 1, steel plate: using Baosteel galvanized steel plate 6 folding processing. 2. Filling: High density calcium sulfate fiber mixture is filled inside. 3. Load performance: (1) concentrated load ≥ 5000N deflection ≤2MM (2) uniform load ≥ 28598N / ㎡ (3) concentrated load ≥ 15000N (4) rolling load ≥ 4121N (5) support load: at 20KN force for 1 minute support intact as original product features: (1) Strong bearing capacity of the floor, green environmental protection, fire prevention, waterproof, anti-corrosion. (2) In different temperature and humidity environment, good stability.
Calcium sulfate OA network raised floor as a high-quality anti-static floor products with a beautiful price, in the national market development space is very broad, Hebei Kehua is the main product in the near future. Excellent, good faith is the company's consistent purpose, Hebei kehua prevent static Co., Ltd. to product quality and service is a promise, and is willing to cooperate with old and new friends to create a new field of building materials.
Strict performance and safety testing of flooring; Strong noise attenuation effect; Good antistatic performance; Green environmental protection, waterproof, anti-corrosion, sound insulation, anti-static effect of all aspects of excellent quality floor
Calcium sulfate base plate adopts non-toxic and unbleached fabric fiber as processing material, combined with solidified calcium sulfate crystal, and made by pulse pressing process, because of its environmental protection, fire prevention, high strength, leveling and many other advantages, has become a new generation of raised floor.
Features
Six bread galvanized steel, good sealing performance, waterproof; High dimensional accuracy, high load-bearing pressure resistance; The height of the bracket can be adjusted, flexible assembly, large amount of wiring, good interchangeability; The surface can lay all kinds of veneer, beautiful and generous; High load pressure; High reuse rate, convenient disassembly, cost saving, long service life.
Application
High-end machine room, telecom machine room, mobile machine room, bank, intelligent office, army command center, etc. It can perfectly solve the needs of various places to frame air anti-static.
Performance select chart
| Type | Specification | Concentrated Load(N) | Impact Load(N) | Ultimate Load(N) | Untimate Load(N/m2) | Dynamic Load(N) | Fire Protection | System resistance | ||||
| International | National | LB | N | KG | 10 | 10000 | ||||||
| FS700 | HDW(Q) | 600x600x30 | 700 | 2950 | 318 | 550 | 8850 | 12500 | 2950 | 2255 | A | |
| FS800 | HDW(P) | 600x600x30 | 800 | 3560 | 363 | 670 | 10680 | 16000 | 3560 | 2950 | A | |
| FS1000 | HDW(B) | 600-600x30 | 1000 | 4450 | 453 | 670 | 13350 | 23000 | 4450 | 3560 | A | |
