Calcium sulphate raised access floor (HDW)

Short Description:

Calcium sulphate raised floor – Flame retardant, sound insulation, dustproof and wear resistance, super load-bearing and pressure resistant

Calcium sulfate anti-static floor is made of non-toxic and unbleached plant fiber as reinforcement material, combined with solidified calcium sulfate crystal, and made by pulse pressing process. Floor surface is made of HPL melamine, PVC, ceramic tile, carpet, marble or natural rubber veneer, plastic edge strip around the floor and galvanized steel plate at the bottom of the floor. Because of its environmental protection, fire prevention, high intensity, level off and so on a lot of respects superiority, already became the material that overhead floor family uses most extensively.


Product Detail

Product Tags

Product description

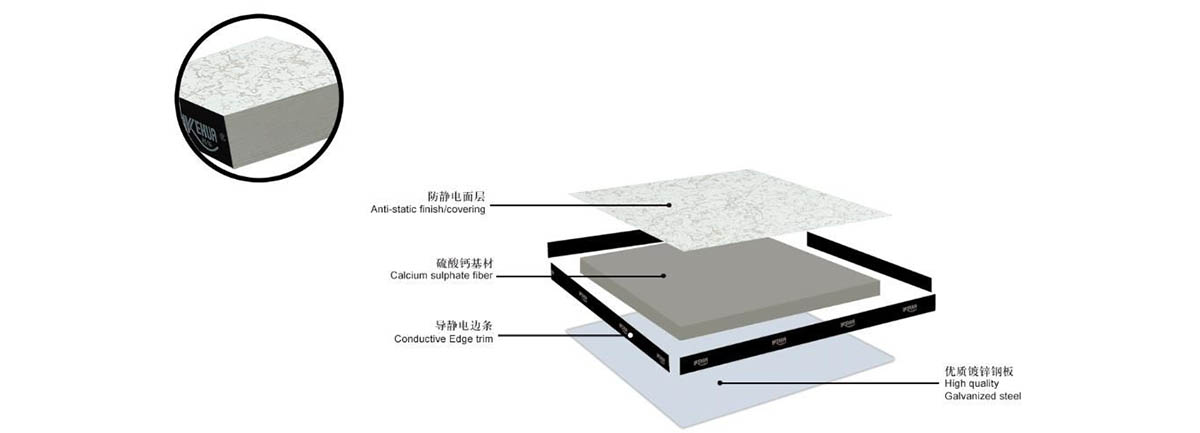

Calcium sulfate anti-static floor is made of non-toxic and unbleached plant fiber as reinforcement material, combined with solidified calcium sulfate crystal, and made by pulse pressing process. Floor surface is made of HPL melamine, PVC, ceramic tile, carpet, marble or natural rubber veneer, plastic edge strip around the floor and galvanized steel plate at the bottom of the floor. Because of its environmental protection, fire prevention, high intensity, level off and so on a lot of respects superiority, already became the material that overhead floor family uses most extensively. In developed country and area dosage is very big, already exceeded compound floor dosage becomes stylist the mobile floor that considers first. Calcium sulfate anti-static floor with calcium sulfate as the base material, the front and back of the floor with galvanized sheet bonding, surrounded by PVC edge, the floor is not easy to damp, not easy to deformation, longer burning time, long service life, the installed floor below the formation of a path, convenient floor below the line, line maintenance. Floor does not need to remove oil phosphating spray, flatness is good, the edge is not anti-warping, environmental protection, strength, sealing and stability.

Features

1. Strong bearing capacity of the floor, excellent anti-static performance.
2. Green environmental protection, waterproof, arson, anti-corrosion.
3. Good stability of floor under different temperature and humidity.
4. Calcium sulfate floor with ecological environmental protection, flame retardant.
5. Quality assurance, smooth, all kinds of covering material beautiful and generous.
6. Durable, good foot feeling, anti-static, high bearing strength.

Application

Calcium sulfate floor is widely used in anti-static requirements, load-bearing requirements, laying requirements, paving effect requirements are very high-grade occasions, such as banks, telecom room, mobile room, intelligent office, high-grade room, army command center.

Performance select chart

Type Specification
Concentrated Load(N) Impact Load(N) Ultimate Load(N) Untimate Load(N/m2) Dynamic Load(N) Fire Protection System resistance
International National LB N KG 10 10000
FS1000 HDW(B) 600x600x32 1000 4450 453 670 13350  23000 4450 3560 A 1x106Ω~1x109Ω
FS1250 HDW(Z) 600x600x32 1250 5563 568 670 16680 33000 5560 4450 A
FS1500 HDW(CZ) 600x600x35 1500 6675 681 780 20025 43000 6675 5560 A
