Anti-static Aluminum raised access floor (HDL)
Product description

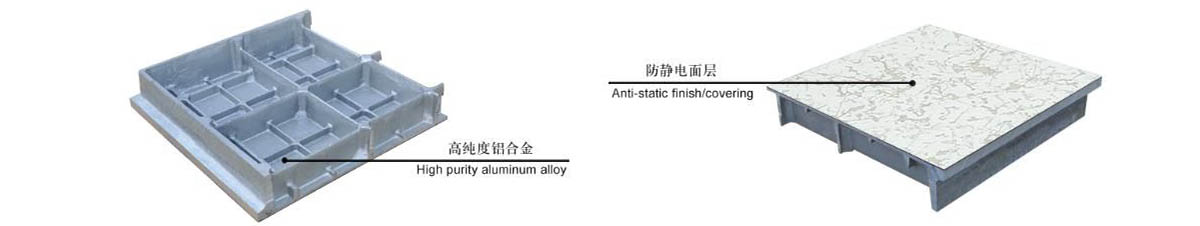

The aluminium panel is made of high purity die-casting aluminium, the bottom have high-strength grids, the finished covered HPL, PVC or others. This product has light weight, high loading capacity, excellent electricconductive effect, Class A fire effect, Class A fire resistance, non-combustible, clean, low environmental pollution long using life and recycling resource.
Aluminum alloy anti-static floor (including aluminum alloy ventilation plate) is completely made of aluminum alloy by negative pressure casting, which integrates the characteristics of corrosion resistance and high strength of aluminum alloy. It has the characteristics of high dimensional accuracy, good electrical conductivity, good fire resistance, antimagnetic and not easy to deform. Extremely stable performance, for the most reliable anti - static floor products.

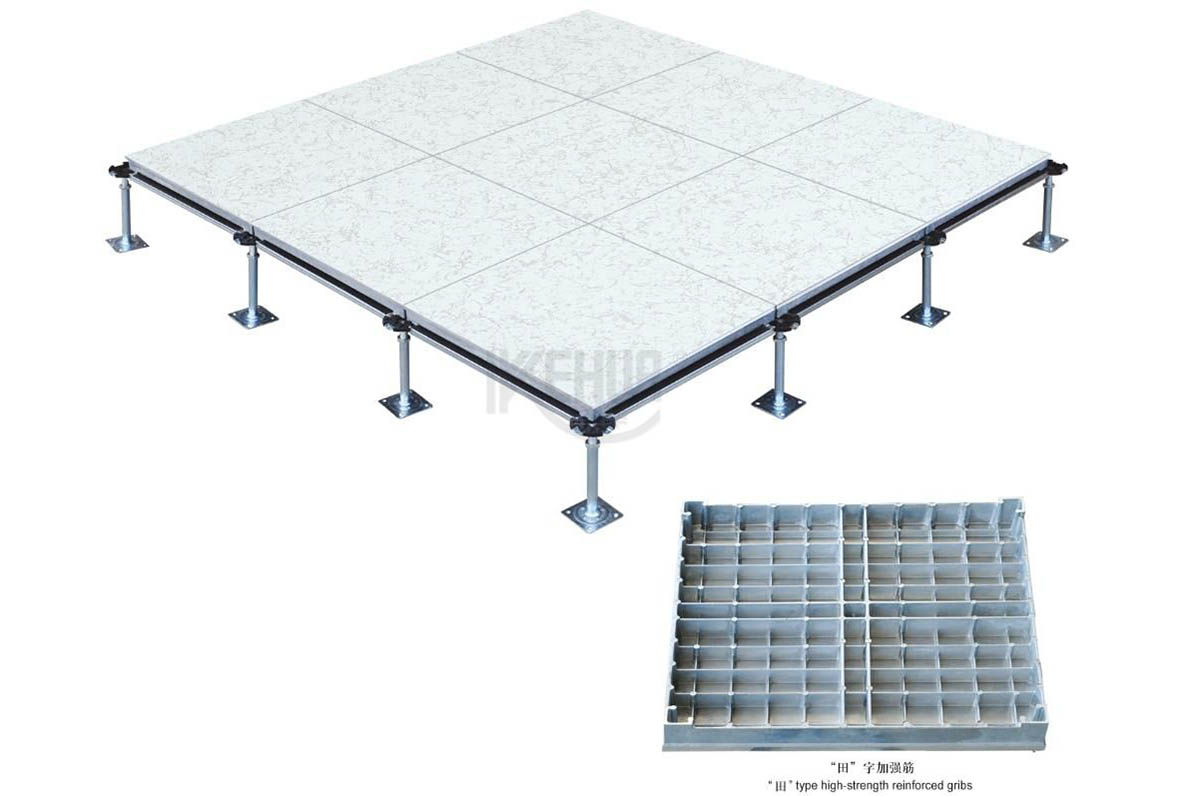

Product selection of aluminum as the base material, the use of large hydraulic press mold one-time die casting or casting molding. The surface adopts imported strong adhesive paste HPL or PVC; The support and beam are made of steel mould, and the height of the screw can be adjusted at will.
Features
1. Strong stability, high dimensional, with standard structure.
2. Fire proof, water proof, anti-static, anti-magnetic, long use time.
3. High loading structure, easy to installation, interchangeable with all panel.
4. 100%recycle, environment building material.
Application

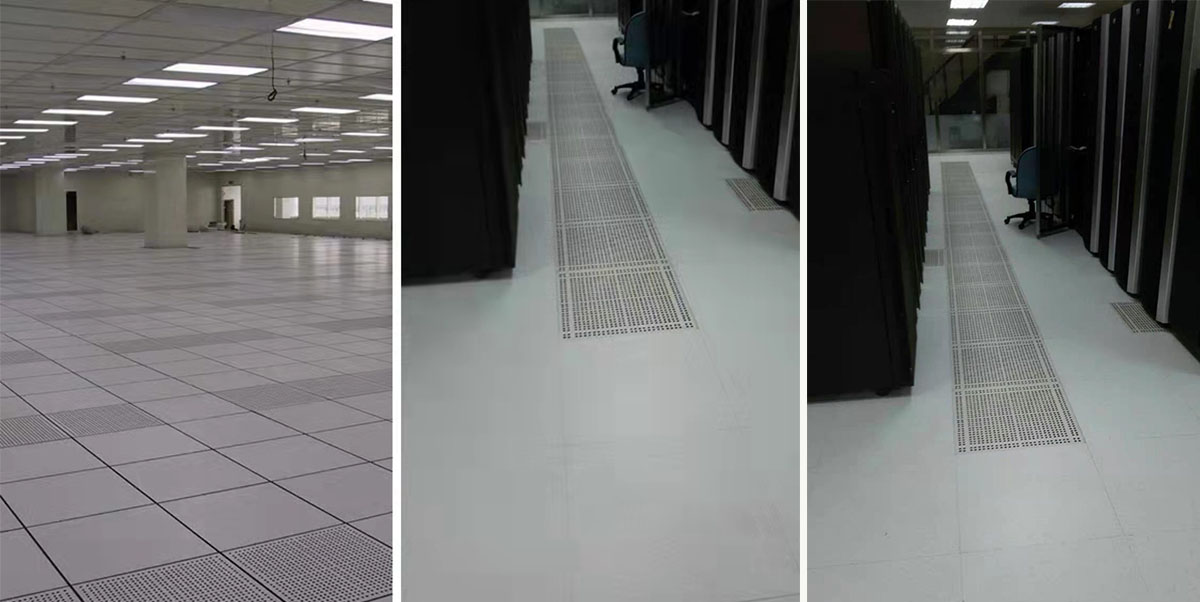

Aluminium raised floor widely used in telecommunications, power electonics, microelectronics, medicine and other industries, such as program control room, computer room, electric power dispatching room, clean purification and son, which required purification and anti-static palces.
Performance select chart
| Type | Specification |
Concentrated Load(N) | Impact Load(N) | Ultimate Load(N) | Untimate Load(N/m2) | Dynamic Load(N) | Fire Protection | System resistance | ||||
| International | National | LB | N | KG | 10 | 10000 | ||||||
| FS1000 | HDL(B) | 600x600x40 | 1000 | 4450 | 453 | 670 | 13350 | 23000 | 4450 | 3560 | A | |
| FS1250 | HDL(Z) | 600x600x40 | 1250 | 5563 | 568 | 670 | 16680 | 33000 | 5560 | 4450 | A | |
| FS1500 | HDL(CZ) | 600x600x50 | 1500 | 6675 | 681 | 780 | 20025 | 43000 | 6675 | 5560 | A | |
| FS2000 | HDL(CZ) | 600x600x50 | 2000 | 8880 | 906 | 780 | 31130 | 58000 | 8880 | 6670 | A | |
